16 ГБ хранилища Полностью автоматический анализатор вязкости препарата с диапазоном движения Ubbelohde 5-100 °C

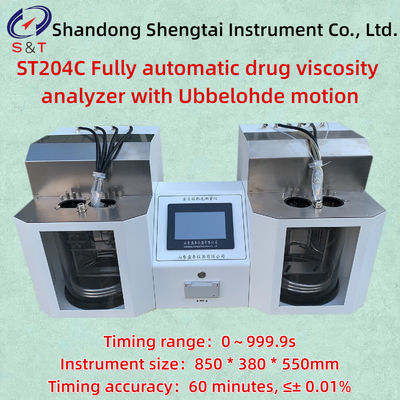

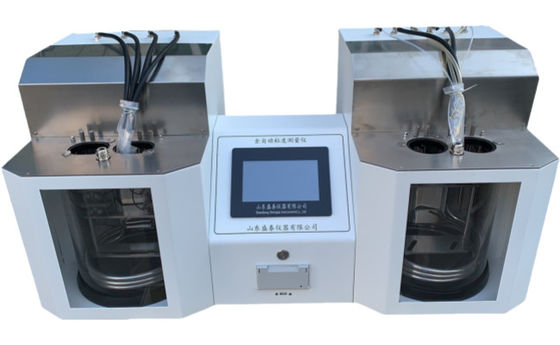

ST204C Fully automatic drug viscosity analyzer with Ubbelohde motion

The ST204C fully automatic Proctor Ubbelohde kinematic viscometer is designed and manufactured strictly in accordance with General Rule 0633 of the 2025 Chinese Pharmacopoeia, which includes the first method for measuring the viscosity of a liquid using a capillary tube and the second method for measuring the viscosity of a liquid using a relative method. This method measures the time required for a certain volume of liquid to flow through a capillary tube under the action of gravity, in order to obtain the kinematic viscosity of the fluid.

The ST204C fully automatic drug kinematic viscosity analyzer has a series of fully automatic functions such as automatic temperature control, automatic extraction, automatic timing, automatic calculation, automatic printing, automatic cleaning, and automatic drying in automatic mode. When in use, only one injection click is needed to start the experiment.

Technical performance parameters:

● Compliant with standard: General Rule 0633 of the Chinese Pharmacopoeia 2025

● Temperature measurement range: 5-100 ℃ (with refrigeration);

● Temperature control accuracy: 0.1 ℃

● Display mode: Adopting human body sensing touch screen

● Operation process: The entire process of sample temperature control, detection, calculation, viscosity tube cleaning, drying, and report printing is automated

● Viscosity tube fixture: made of all 304 stainless steel material, with high and low temperature resistant graphite sliding bearing device

● Equipped with LED soft light, uniform fill light, easy to observe.

● Measurement range: Ubbelohde viscosity measurement range: 0.6-1000mm2/s

● Pinker viscosity measurement range: 0.6-17000mm2/s

● Timing range: 0.0s to 999.9s;

● Timing accuracy: no more than ± 0.01% within 60 minutes;

● Data memory: The microcomputer instrument memory can be expanded to 16GB

● Detection method: photoelectric sensor detection

● Result output: It can also be equipped with a USB drive output function to output to the PC for long-term storage

● Remote upgrade: Equipped with TCP network transmission function, software can be remotely upgraded later

● Account management: Set up hierarchical management of accounts based on passwords, and can set up a total account and sub accounts

● Account Extension: Audit Tracking Function

● Data storage: USB data export function

● Data sharing: can be integrated into the LIMS system of the group company (optional)

● Printer: equipped with a micro printer

● Power consumption of the whole machine: not exceeding 2000W.

● Working power supply: AC220V ± 10%; 50Hz

● Instrument size: 850 * 380 * 550mm

● Weight: 38kg

Note: The appearance pictures, dimensions, volume, and weight of the instrument are for reference only. If there are any updates to the instrument, there may be slight changes without prior notice.

Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:

----The provided instrument materials are brand new, meet national quality standards, and have a manufacturer's certificate of conformity;

----The materials and main components provided meet the technical requirements specified in the technical documentation;

----The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts).

----We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to equipment malfunction caused by the user's responsibility, we are responsible for repairing and charging reasonable fees.

----Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine.

----After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.

Packing list
