Fully Automatic Pinker Motion Viscometer ASTM D445 Light Fuel Oil Rt+5 ℃ ~ 100.0 ℃

Place of Origin CHINA
Фирменное наименование Shandong Shengtai Instrument Co., Ltd.
Сертификация GB/T265 ASTM D445
Model Number SH112C
Minimum Order Quantity 1
Packaging Details wooden case
Delivery Time 7-15 work days
Payment Terms T/T
Supply Ability 10000 sets/year

Свяжитесь я бесплатно образцы и талоны.

WhatsApp:0086 18588475571

Вичат: 0086 18588475571

Скайп: sales10@aixton.com

Если вы имеете любую заботу, то мы предусматриваем 24-часовую интерактивную справку.

x
Подробная информация о продукте
Heating rate >5 ℃/min Temp control range Room temp+5 ℃ ~ 100.0 ℃
Temp control accuracy ± 0.1 ℃ Measurement range 0.4-30000mm2/s
Timing range 0.0s ~ 9999.9s Temperature sensor Pt100 platinum resistor
Data storage 199 sets Material of viscometer fixture 304 stainless steel
Оставьте сообщение
Характер продукции

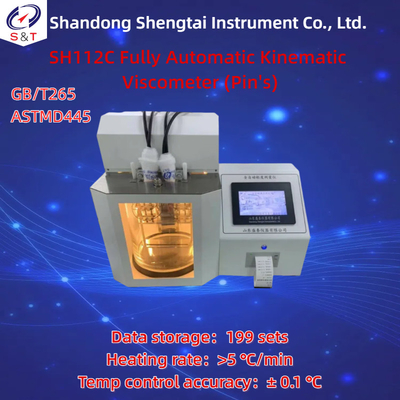

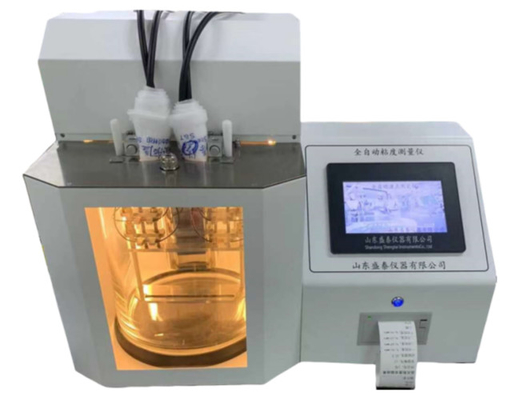

SH112C Fully Automatic Kinematic Viscometer (Pin's)

The SH112C fully automatic Proctor kinematic viscometer is suitable for measuring the kinematic viscosity of both transparent and opaque liquids to the same accuracy, including crude oil, light fuel oil, lubricating oil, additives, and silicone oil, according to GB/T265 "Determination of kinematic viscosity of petroleum products and algorithm for dynamic viscometers" and ASTM D445-2024 "Standard test method for kinematic viscosity of transparent and opaque liquids (and calculation of dynamic viscosity)". It is also suitable for measuring the kinematic viscosity of samples with high wax content or samples containing insoluble components at room temperature.

Fully automatic constant temperature, viscosity testing, cleaning, and drying viscometer, no need for personnel to operate randomly. After the operator sets out, they can leave the site, and the instrument can automatically complete all tasks.

Kinematic viscosity: Determine the gravity flow under a certain volume model at a constant temperature, and use a calibrated glass capillary viscometer to measure the viscosity of the liquid. The constant of the capillary viscometer flows over time, and the kinematic temperature of the product is used to measure the viscosity of the liquid

Product Model SH112C
Product Name Fully Automatic Kinematic Viscometer (Pin's)
Manufacturer Shandong Shengtai Instrument Co., Ltd
Testing item It can measure the kinematic viscosity of transparent and opaque liquids to the same accuracy, including crude oil, light and heavy fuel oil, lubricating oil, additives, and silicone oil
Compliant with standard GB/T265 ASTMD445
Simple technical features Fully automatic constant temperature, viscosity testing, cleaning, and drying viscometer, no need for personnel to operate randomly. The operator can leave the site after layout, and the instrument can automatically complete all tasks.

Fully Automatic Pinker Motion Viscometer ASTM D445 Light Fuel Oil Rt+5 ℃ ~ 100.0 ℃ 0

Main technical parameters and characteristics:

● Large size color touch screen with a resolution of up to 1024 * 600.

● Adopting a 32-bit microprocessor as the control core, a self-developed graphical user interface for human-machine operation.

● The main components and electronic parts of the instrument are all imported, with good stability.

● The instrument has automatic timing function, automatic calculation, automatic printing, automatic cleaning, automatic drying and other functions.

● Double layered cylinder body, fast and stable temperature control, heating rate>5 ℃/min.

● Equipped with LED soft light, uniform fill light, easy to observe.

● It has the function of storing viscosity meter parameters.

● Adopting method: GB/T265 ASTMD445

● Temperature control range: Room temperature+5 ℃~100.0 ℃

● Temperature control accuracy: ± 0.1 ℃

● Measurement range: 0.4-30000mm2/s (choose different viscosity tubes)

● Timing range: 0.0s to 9999.9s

● Sample quantity: 2 sets of capillary viscometers (specify viscosity range when ordering)

● Temperature sensor: Pt100 platinum resistor

● Storage method: The experimental results can store 199 sets of historical data for easy retrieval

● Result output: It can also be equipped with a USB drive output function to output to the PC for long-term storage

● Output format: The output format of the result USB drive is CSV or Excel

● Viscometer fixture: made of all 304 stainless steel material, with high and low temperature resistant graphite sliding bearing device

● Standard printing: Standard micro printer with automatic measurement and thermal printing

★ Remote upgrade: Equipped with TCP network transmission function, software remote upgrade can be performed later (optional)

★ Data Management: Can be connected to the Limis system (optional)

Display mode Large size color touch screen
Display screen resolution 1024 * 600
Heating rate >5 ℃/min
Adopting method GB/T265 ASTMD445
Temp control range Room temp+5 ℃ ~ 100.0 ℃
Temp control accuracy ± 0.1 ℃
Measurement range

0.4-30000mm2/s

(choose different viscosity tubes)

Timing range 0.0s ~ 9999.9s
Sample quantity 2 sets of capillary viscometers (specify viscosity range when ordering)
Temperature sensor Pt100 platinum resistor
Data storage 199 sets
Result output USB flash drive
Output format CSV / Excel
Material of viscometer fixture 304 stainless steel
Standard printing Standard micro printer with automatic measurement and thermal printing
Remote upgrade Equipped with TCP network transmission function, software remote upgrade can be performed later (optional)
Data Management Can be connected to the Limis system (optional)

Note: The appearance pictures, dimensions, volume, and weight of the instrument are for reference only. If there are any updates to the instrument, there may be slight changes without prior notice.



Select the aperture of the viscosity tube based on the viscosity value

Fully Automatic Pinker Motion Viscometer ASTM D445 Light Fuel Oil Rt+5 ℃ ~ 100.0 ℃ 1

Packing list

Number Name specifications Quantity Note
1 Fully automatic viscosity tester   1 set
2 Specialized viscosity tube   4 pieces
3 Sample injector   1 piece
4 Printing paper   2 rolls
5 Electric suction apparatus   1 unit
6 Certificate of conformity   1 copy
7 Instructions   1 copy
