Fully Automatic Distillation Boiling Range Tester ASTM D86 Touch Screen

  • Fully Automatic Distillation Boiling Range Tester ASTM D86 Touch Screen
  • Fully Automatic Distillation Boiling Range Tester ASTM D86 Touch Screen
Место происхождения Китай
Фирменное наименование Shandong Shengtai Instrument Co., Ltd.
Сертификация GB/T6536 GB/T7534 ASTM D86
Номер модели SH6536
Количество мин заказа 1
Упаковывая детали Деревянный корпус
Время доставки 7-15 рабочих дней
Условия оплаты банковский перевод
Поставка способности 10000 комплектов/год

Свяжитесь я бесплатно образцы и талоны.

WhatsApp:0086 18588475571

Вичат: 0086 18588475571

Скайп: sales10@aixton.com

Если вы имеете любую заботу, то мы предусматриваем 24-часовую интерактивную справку.

x
Подробная информация о продукте
Дисплей выхода Экранный дисплей касания Диапазон измерения температуры Комнатная температура ～ 400 ℃
Точность отображения 0,1 ℃ Система охлаждения Охлаждение компрессором
Размер прибора 540 * 490 * 640 мм Вес инструмента 58КГ
Выделить

fully automatic distillation tester ASTM D86

,

boiling range tester touch screen

,

crude oil testing equipment with warranty
Оставьте сообщение
Характер продукции
Fully Automatic Distillation And Boiling Range Tester Single Tube ASTM D86
Product Specifications
Attribute Value
Output display Touch screen display
Temperature measurement range Room temperature ～ 400 ℃
Display accuracy 0.1 ℃
Cooling system compressor cooling
Instrument size 540 * 490 * 640mm
Instrument weight 58kg
Product Description

SH6536 Fully Automatic Distillation and Boiling Range Tester

The SH6536 fully automatic distillation and boiling range analyzer adopts a color LCD display screen, Chinese menu human-machine dialogue, guided operation, and fully automated measurement process. Compliant with multiple national and international standards including GB/T6536, ASTM D86, GB/T7534-2004, GB338-2004, YB/T 2303-2012, YB/T5022-2016, and GB/T3146 ASTM D1078.

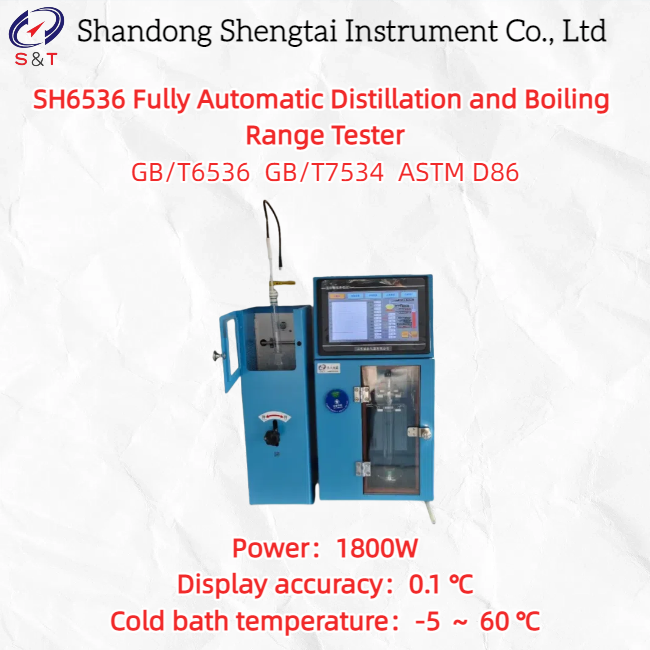

Fully Automatic Distillation Boiling Range Tester ASTM D86 Touch Screen 0
Key Features
  • Compliant with standard: GB/T6536 GB/T7534 ASTM D86
  • Touch screen display with user-friendly interface
  • High-precision liquid level tracking system with American linear motor and imported photoelectric tracker
  • Fully automated process including heating, cooling, distillate tracking, and result printing
  • Real-time display of experimental process with temperature, volume, and pressure data
  • Automatic atmospheric pressure detection and correction
  • Multiple automatic stop modes available
  • Data storage, query, and printing capabilities
  • USB data export function
  • Optional TCP network transmission for remote upgrades
  • Optional integration with Limis systems
Technical Parameters
Temperature measurement range: Room temperature ～ 400 ℃
Display accuracy: 0.1 ℃
Power: 1800W
Steam sensor: German imported glass PT100 platinum resistor
Start heating to initial boiling point time: 5 ～ 15 minutes
Distillation rate: 2 ～ 10ml/min
Recovery volume measurement range: 0 ～ 100ml
Recovery volume measurement accuracy: ± 0.1 ml
Cooling system: compressor cooling
Cold bath temperature: -5 ～ 60 ℃
Recycling room temperature: 0 ～ 40 ℃
Instrument size: 540 * 490 * 640mm
Instrument weight: 58kg
Packaging size: 670 * 590 * 710mm
Packaging weight: 71.6kg wooden crate
Standard Accessories
Number Name Quantity Unit Note
1 Host 1 Unit
2 Sensor 1 Piece
3 Distillation flask 1 Piece 125ml or 100ml
4 Measuring cylinder 1 Piece 100ml
5 Heating support plate 1 Set
6 Deflector 1 Set
7 Power line 1 Strip
8 Fuse tube 1 Piece 10A
9 Operation instructions 1 Copy
10 Packing list 1 Copy
11 Certificate of conformity 1 Copy
Quality Assurance
  • Brand new instruments meeting national quality standards with manufacturer's certificate of conformity
  • One year quality assurance period (excluding normal wear and tear of vulnerable parts)
  • Free maintenance for any instrument quality issues during warranty period
  • Lifetime discounted supply of parts and lifetime maintenance/repair services
  • After warranty period, maintenance and technical services available at cost fee
Note: The appearance pictures, dimensions, volume, and weight of the instrument are for reference only. If there are any updates to the instrument, there may be slight changes without prior notice.

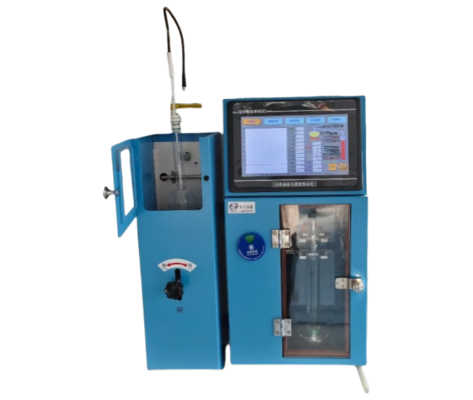

Fully Automatic Distillation Boiling Range Tester ASTM D86 Touch Screen 1
