Semi-automatic Protein Content Analyzer for Pharmaceutical Excipients with 0.1-200mgN Range and ≥ 99.5% Recovery Rate

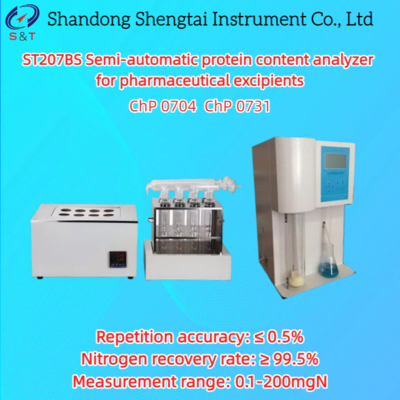

ST207BS Semi-automatic protein content analyzer for pharmaceutical excipients

The ST207BS semi-automatic protein content analyzer for pharmaceutical excipients complies with the 2020 Chinese Pharmacopoeia 0704 Nitrogen Determination Method Third Method Nitrogen Meter Method and 0731 Protein Content Determination Method First Method Kjeldahl Nitrogen Determination Method. Suitable for the determination of nitrogen content in nitrogen-containing compounds using constant and semi trace methods, mainly used to detect protein nitrogen content in pharmaceutical excipients, chemicals, grains, dairy products, etc. The process is controlled by a microcomputer, with rich display information, making it easy for users to hold the instrument and complete the distillation of samples in a few minutes. It can be operated in manual and automatic modes, making it convenient for customers to choose.

Performance Characteristics

● Switching between manual and automatic modes, automatic quantitative addition of alkali solution and boric acid absorption solution.

● Automatic mode: One click completion of automatic water addition, automatic water level control, automatic dilution, automatic acid addition, automatic alkali addition, and automatic distillation. Customers can set different automatic working times according to their sample needs. In automatic operation mode, the pause function can be used to increase the usage of each reagent in manual operation mode.

● Manual mode: Customers can choose manual mode for separate operation of four processes: dilution, acid addition, alkali addition, and distillation. Time and dosage can be controlled by oneself.

● Can store 10 sets of experimental programs to meet different user needs.

● The distillation time can be set arbitrarily, and an automatic alarm will be triggered when the distillation ends

● A perfect safety protection system that can measure and protect against overheating and overpressure in distillers and pipelines

● Intelligent design of automatic fault detection and sound light alarm system

● The widespread use of corrosion-resistant materials such as stainless steel can extend the service life of instruments

Technical Specifications

● Measurement range: 0.1-200mgN

● Nitrogen recovery rate: ≥ 99.5%

● Repetition accuracy: ≤ 0.5%

● Sample size measurement: Solid ≤ 6g, Liquid ≤ 20ml

● Distillation speed: 4-6 min

● Distillation time: 0-999S can be set arbitrarily

● Display mode: LCD display

● Power supply: AC220V 50Hz

● Maximum power: 2000W

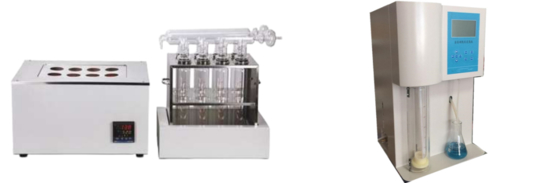

ST-08C digestion furnace

Product Features:

● Quartz infrared heating tube; Fast heating time and high efficiency

● The furnace hole temperature is continuously adjustable, with a fast heating speed and a wide range of applications

● The temperature difference between the holes is small, the sample digestion consistency is good, the thermal efficiency is high, and it is conducive to the digestion of the sample

● The instrument table and test tube rack are made of welded brushed stainless steel plates, which have a certain anti-corrosion ability

Parameter indicators:

● Number of heating holes: 8

● Digestive tract length: 300mm

● Design temperature: RT ～ 500 ℃

● Temperature control method: intelligent PID control

● Temperature control accuracy: ± 1 ℃

● Heating rate: ≈ 30 ℃/min

● Voltage: AC220V

● Power: 2Kw

● Current: 9A

● Sealing material: polytetrafluoroethylene

Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:

----The provided instrument materials are brand new, meet national quality standards, and have a manufacturer's certificate of conformity;

----The materials and main components provided meet the technical requirements specified in the technical documentation;

----The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts).

----We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to equipment malfunction caused by the user's responsibility, we are responsible for repairing and charging reasonable fees.

----Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine.

----After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.
