0.093Mpa Carbon Dioxide Adsorption Rate Meter control range 1.0℃～99.9℃ LYT 1971-2011

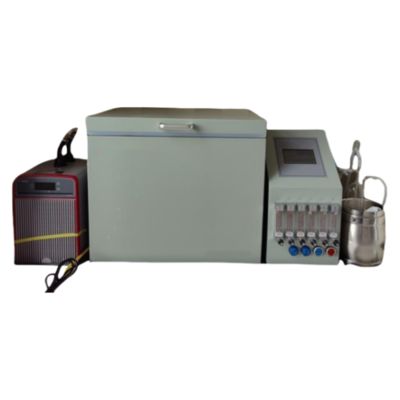

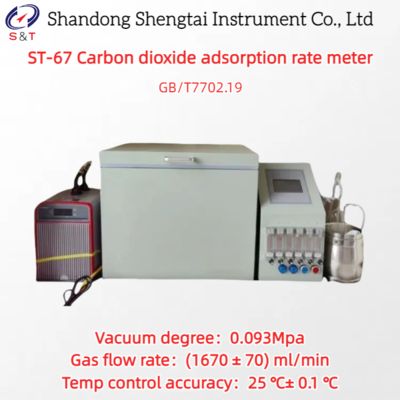

ST-67 Carbon dioxide adsorption rate meter

The ST-67 activated carbon carbon dioxide adsorption rate meter is suitable for measuring the carbon dioxide adsorption rate of activated carbon, and meets the national standard requirements of LYT 1971-2011 "Activated Carbon for Pressure Swing Adsorption Refinement of Hydrogen (Carbon Dioxide Adsorption Capacity)".

The instrument adopts a 4.3-inch intelligent touch screen human-machine exchange design, equipped with a compressor refrigeration cycle device as standard, and fully automatic control of the heating and cooling functions of the water bath box, ensuring that the water bath temperature is always maintained at the set temperature. The instrument is designed as a separate unit, consisting of a smart screen integrated circuit control unit, a vacuum pump body, a purification unit, a constant temperature water bath unit, and a compressor refrigeration cycle unit to form an intelligent detection device,

Design 6 channels that can simultaneously detect and analyze 6 samples, greatly improving the efficiency of operational analysis experiments. The temperature collection uses high-precision platinum probes and a non fixed probe design, which can monitor real-time temperature data at every point in the water bath at any time. The water bath unit adopts a double-layer design, filled with environmentally friendly insulation materials inside, which has excellent constant temperature effect and is more energy-efficient.

Technical parameters:

● Voltage:AC220V

● Executive standard:LYT 1971-2011

● Heating method:Electric heating

● Display method:4.3-inch intelligent touch screen

● Temp control method:fully automatic heating and cooling

● Refrigeration method:compressor refrigeration

● Drying device:(50mm * 320mm) * 2

● Vacuum degree:0.093Mpa

● Safety measures:Leakage protection switch

● Flow meter material:Agate

● Gas flow rate:(1670 ± 70) ml/min

● Temp control accuracy:25℃ ± 0.1℃

● Temp control range:1.0℃ ～ 99.9℃

● Boundary dimensions:

Temp control unit:255*550*450mm(L*W*H)

Water bath unit:570*525*510 mm(L*W*H)

Refrigeration unit:200*340*300 mm(L*W*H)

●Whole power:≤ 2500W

Note: The appearance pictures, dimensions, volume, and weight of the instrument are for reference only. If there are any updates to the instrument, there may be slight changes without prior notice.

Instrument Quality Assurance Certificate

Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:

----The provided instrument materials are brand new, meet quality standards, and have a manufacturer's certificate of conformity;

----The materials and main components provided meet the technical requirements specified in the technical documentation;

----The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts).

----We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to equipment malfunction caused by the user's responsibility, we are responsible for repairing and charging reasonable fees.

----Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine.

----After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.

Packaging and Delivery

1. Packaging of goods: standard wooden or cardboard boxes.

2. Internal packaging: Elastic pearl cotton packaging product, hardwood board+strong bandage fixation
