Ointment Adhesive Testing Machine Travel 150mm Speed 1 ～ 600mm/Min ChP 0952

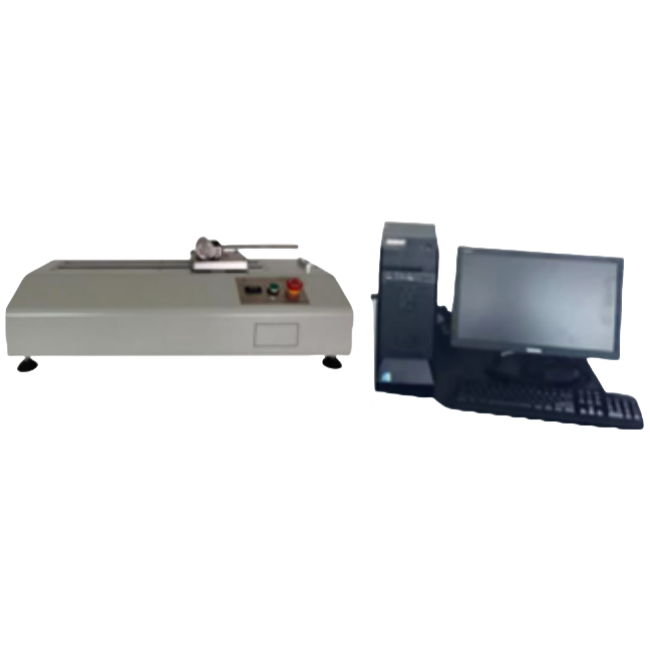

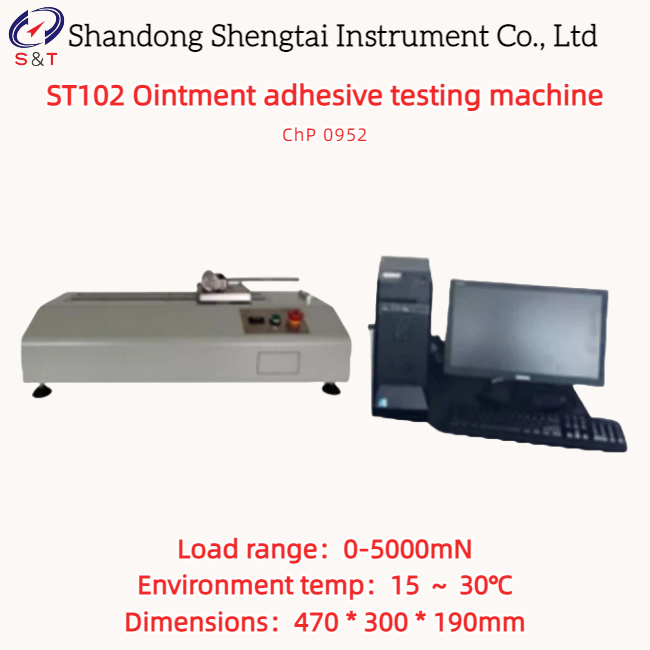

ST102 Ointment adhesive testing machine

The ST102 ointment adhesion testing machine is designed strictly in accordance with the requirements of the fourth method of adhesion determination in the new version of the "2025 Chinese Pharmacopoeia 0952 Adhesion Determination Method". It adopts modern mechanical design concepts and ergonomic design principles, and uses advanced microcomputer processing technology for careful and reasonable design and manufacturing. It is a new generation of testing machine with novel design, convenient use, excellent performance, and beautiful appearance.

Overview of Testing Process:

Take 3 pieces of the test sample, usually cut into a size of 50mm × 70mm, with the adhesive side facing upwards, and place them on the sample module. Align with the appropriate scale line, tear off a little of the cover lining on both sides, and use a pressure strip to press down on the exposed adhesive surfaces on both sides. Carefully remove the cover lining and place it naturally in the center on the fixture base plate, so that the test sample fits flat on the base plate. Press down the pressure plate horizontally, fix the bottom plate and pressure plate with bolts on both sides, evenly tighten the adhesive surface of the test sample on the rectangular strip, place it on the instrument, fix it, and select the appropriate measurement mode for measurement.

The instrument comes with different measurement modes for setting the forward and backward speed of the pressure spoke, which are used for rolling and testing, respectively. Unless in special circumstances, the forward speed of the pressure spoke is generally set at 600mm per minute, and the backward speed is set at 21mm per minute.

Product Features:

● Adopting high-precision force sensors to ensure testing accuracy error within ± 1%.

● Adopting stepper motor control, the measuring head travels accurately and stably, and the measurement results have good repeatability.

● Friendly human-machine interface operation, fully automatic completion of testing, with testing data statistical processing function, and micro printer output.

● The test results are automatically memorized and displayed, reducing human error, making it easy to operate and ensuring stable and accurate results.

● Equipped with computer connection software, automatic communication and storage of test results, and automatic printing

Product parameters:

Note: The appearance pictures, dimensions, volume, and weight of the instrument are for reference only. If there are any updates to the instrument, there may be slight changes without prior notice.

Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:

----The provided instrument materials are brand new, meet national quality standards, and have a manufacturer's certificate of conformity;

----The materials and main components provided meet the technical requirements specified in the technical documentation;

----The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts).

----We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to equipment malfunction caused by the user's responsibility, we are responsible for repairing and charging reasonable fees.

----Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine.

----After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.

Packing list
