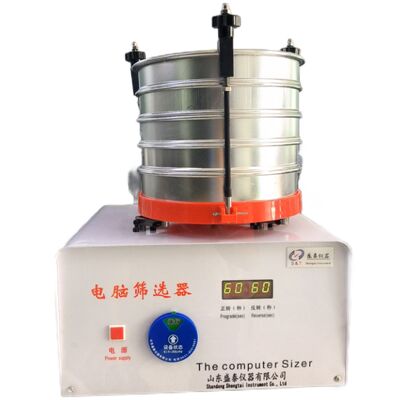

3 Layers Electronic Sieve Shaker 500g Sample Grain Oil And Fat Screening GB/T 5494
Подробная информация о продукте
| Максимальная пропускная способность | 500г | Количество слоев скрининговой рамки | 3 слоя |
|---|---|---|---|
| Амплитуда экранирования | 100 мм | Скорость вращения | 120r/min |
| Мощность двигателя | 60 Вт | Рабочее напряжение | 220 В переменного тока |
| Выделить | 3 layers electronic sieve shaker,grain oil fat screening equipment,edible oil testing sieve shaker |
||
Характер продукции

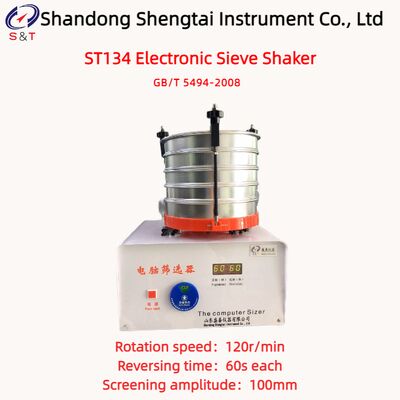

ST134 Electronic Sieve Shaker Electronic Sieving apparatus
ST134 electric Sieve shaker is a kind of special equipment developed according to GB/T 5494-2008 inspection method for impurities and imperfect particles in grain and oil products .It is a semi-automatic mechanical screen with table structure, worm gear as variable speed transmission, screen body supported by three-point plane, and plane rotation by eccentric connecting rod
Characteristics:
● Separate automatically
● Compact and reasonable structure
● Smooth operation, stable performance, easy to operate
Technical parameters:
| Maximum screening capacity | 500g |
| Number of screening frame layers | 3 layers |
| Screening amplitude | 100mm |
| Rotation speed | 120r/min |
| Reversing time | 60s each |
| Supporting sieve grid outer diameter | 220mm |
| Motor power | 60W |
| Working voltage | AC220V |
| Whole machine weight | 22kg |
| Dimensions | 400 × 400 × 200mm |
Note: The appearance pictures, dimensions, volume, and weight of the instrument are for reference only. If there are any updates to the instrument, there may be slight changes without prior notice.
Grain selection sieve
Grain screening is a testing instrument used to check the impurity content of granular grains and oilseed samples, as well as the content of rice bran powder, in order to determine their quality grade.
Pest screening is a specialized instrument used to test the pest density and pest grade standards of granular grain and oil samples.
Technical Specifications
| Grain screening | Pest screening | |
| Outer diameter | Φ220mm | Φ300mm |
| Height | 50mm | 30mm |
| Aperture mm | Φ1.0,1.2,1.5,2.0,2.5,3.0,3.5,4.0,4.5,5.0,12,1.5×20 | Φ1.5,2.5 |
Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:
----The provided instrument materials are brand new, meet national quality standards, and have a manufacturer's certificate of conformity;
----The materials and main components provided meet the technical requirements specified in the technical documentation;
----The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts).
----We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to equipment malfunction caused by the user's responsibility, we are responsible for repairing and charging reasonable fees.
----Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine.
----After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.
