2 Holes LPG Copper Corrosion Tester RT ～ 100℃ PT100 Sensor Digital Display ASTM D1838

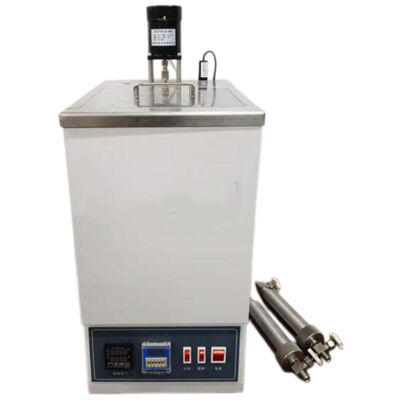

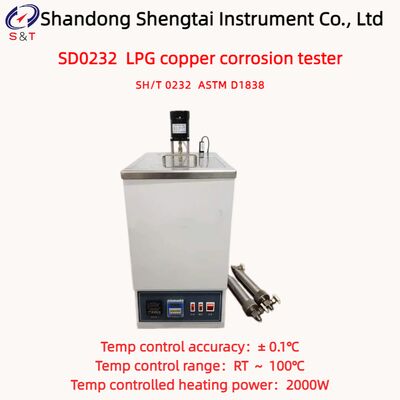

SD0232 LPG copper corrosion tester

SD0232 liquefied petroleum gas copper corrosion tester is designed and manufactured in accordance with the requirements specified in the national petrochemical industry standard SH/T0232 "Liquefied Petroleum Gas Copper Corrosion Test Method" and meet ASTM D1838 .

Liquefied petroleum gas copper corrosion tester, suitable for measuring the corrosion of copper sheets by liquefied petroleum gas.

Instrument Features

● The constant temperature water bath meets the standard requirements.

● The actual temperature and set temperature of the water bath are both displayed digitally. Equipped with a suitable bracket to keep the cylinder vertical. The water bath must have sufficient depth to fully submerge the cylinder and valve during retesting.

● The constant temperature heating adopts a PID automatic adjustment device, which can effectively ensure the temperature control accuracy reaches 40 ℃± 0.5 ℃.

● Copper sheet: 75mm in length, 12.5mm in width, and 1.5-3.0mm in thickness, made of electrolytic copper with a surface smooth, quenched, and cold-rolled purity of 99.9% or higher. Drill a hole with a diameter of 3.0mm at a distance of 3.0mm from the center of the end of the copper sheet.

Technical Specifications

Note: The appearance pictures, dimensions, volume and weight of the instrument are for reference only. If there are any updates to the instrument, they may be slight changes without prior notice.

Instrument configuration

Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:

----The provided instrument materials are brand new, meet national quality standards, and have a manufacturer's certificate of conformity;

----The materials and main components provided meet the technical requirements specified in the technical documentation;

----The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts).

----We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to equipment malfunction caused by the user's responsibility, we are responsible for repairing and charging reasonable fees.

----Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine.

----After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.
