Crude Oil Automatic Closed Cup Flash Point Tester RT ～ 370℃ Electronic Ignition ASTM D93

  • Crude Oil Automatic Closed Cup Flash Point Tester RT ～ 370℃ Electronic Ignition ASTM D93
  • Crude Oil Automatic Closed Cup Flash Point Tester RT ～ 370℃ Electronic Ignition ASTM D93
Место происхождения Китай
Фирменное наименование Shandong Shengtai Instrument Co., Ltd.
Сертификация ISO 2719 ASTM D93 GB/T 261
Номер модели SH105BS
Количество мин заказа 1
Упаковывая детали деревянный ящик
Время доставки 7 - 15 рабочих дней
Условия оплаты Т/Т
Поставка способности 10000 комплектов/год
Подробная информация о продукте
Диапазон измерения температуры Комнатная температура ～ 370℃ Точность ≥ 104 ℃, ± 2 ℃; ≤ 104 ℃, ± 1 ℃
Разрешение 0,1 ℃ Принтер Микро принтер
Размеры 450 × 380 × 350 мм Вес инструмента 19 кг
Выделить

crude oil flash point tester

,

automatic closed cup tester ASTM D93

,

electronic ignition flash point tester
Оставьте сообщение
Характер продукции

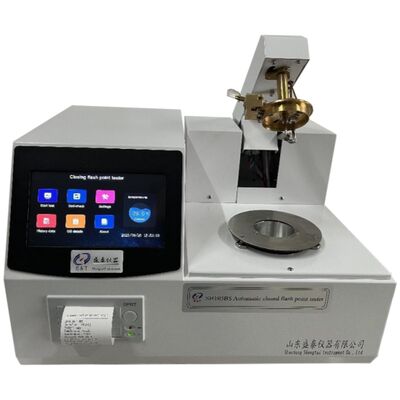

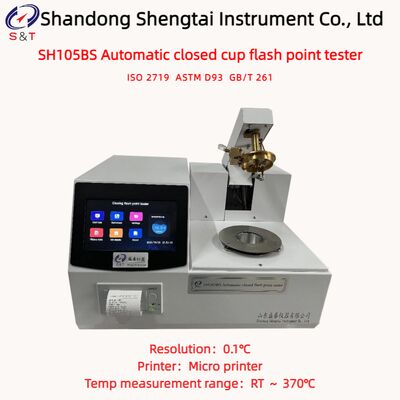

SH105BS Automatic closed cup flash point tester

SH105BS Automatic closed cup flash point tester adopts microcomputer technology and large screen LCD display. The instrument warms up according to the standard method, automatic lifting, automatic ignition, automatic display, automatic locking flash point value, automatic printing results. After the test, it can automatically cool down and realize the full automation of the working process. Widely used in electric power, petroleum, chemical industry, commodity inspection, scientific research and other departments. Compliance with ISO-2719, ASTM D93, GB / T261-2021 standards.

Flash point

Under the specified test conditions, the test flame causes the sample vapor to fire and spread the flame to the lowest temperature on the liquid surface to 1013 kPa atmosphere.

Compliance with standard: GB/T 261-2021 ASTM D93

High Precision Petroleum Products Pensky-Martens Closed Cup Flash Point Tester

Flash Point Apparatus with Closed Cup Testing Method

Pensky-Martens Closed Cup Flash Point Tester

Pensky Martens Closed Cup Flash Point Tester ASTM D93 Standard

Technical performance parameters

● Using color LCD large screen display, full Chinese man-machine dialogue interface, no logo keyboard

● Automatically detect atmospheric pressure and correct the influence of atmospheric pressure on the test and calculate the correction value.

● Opening opening, ignition, detecting and printing data are automatically completed, and the test arm automatically rises and falls.

● Electronic ignition, forced air cooling, no gas source, automatic ignition.

●Automatic ignition of the air source is not required to improve the safety of the test.

Temp measurement range RT ～ 370℃
Accuracy ≥ 104℃, ± 2℃; ≤ 104℃,± 1℃
Resolution 0.1℃
Precision 0.5%
Printer Micro printer
Pressure detection device Equipped with a built-in pressure detection device, it automatically corrects atmospheric pressure.
Base parameter Heating rate in accordance with GB/T261-2021 standard
Ignition method automatic electronic ignition, automatic end stop
It has the function of converting steps A, B, and C.
Mode A Heating rate: 5℃ ～ 6℃/min; Mixing rate: 90r ～ 120r/min; Stir downwards.
Mode B Heating rate: 1.0℃ ～ 1.5℃/min; Mixing rate: 250 ± 10r/min; Stir downwards.
Mode C Heating rate: 2.5℃ ～ 3.5℃/min; Mixing rate: 90r ～ -120r/min; Stir downwards.
Rated power 500W
Dimensions 450 × 380 × 350mm
Instrument weight 19kg

Crude Oil Automatic Closed Cup Flash Point Tester RT ～ 370℃ Electronic Ignition ASTM D93 0

Note: The appearance pictures, dimensions, volume and weight of the instrument are for reference only. If there are any updates to the instrument, they may be slight changes without prior notice.



Packing list

S/N Name Quantity Unit remarks
1 Host 1 Set
2 Oil cup 1 Piece
3 AC power cable 1 Piece
4 Printer paper 1 Piece
5 Instruction manual 1 Piece
6 Packing list 1 Copy
7 Certificate of qualification 1 Copy



Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:

----The provided instrument materials are brand new, meet national quality standards, and have a manufacturer's certificate of conformity;

----The materials and main components provided meet the technical requirements specified in the technical documentation;

----The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts).

----We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to equipment malfunction caused by the user's responsibility, we are responsible for repairing and charging reasonable fees.

----Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine.

----After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.

Crude Oil Automatic Closed Cup Flash Point Tester RT ～ 370℃ Electronic Ignition ASTM D93 1
