ASTM D892 Foaming Characteristics Of Lubricating Oils Analyzer PT100 Sensor 5 ～ 100℃

  • ASTM D892 Foaming Characteristics Of Lubricating Oils Analyzer PT100 Sensor 5 ～ 100℃
  • ASTM D892 Foaming Characteristics Of Lubricating Oils Analyzer PT100 Sensor 5 ～ 100℃
Место происхождения Китай
Фирменное наименование Shandong Shengtai Instrument Co., Ltd
Сертификация GB/T 12579 ASTM D892
Номер модели SH126B
Количество мин заказа 1
Упаковывая детали деревянный ящик
Время доставки 7 - 15 рабочих дней
Условия оплаты Т/Т
Поставка способности 10000 комплектов/год
Подробная информация о продукте
Метод управления температурой Цветный экран LCD Диапазон контроля температуры 5 ～ 100℃, оснащен охладителем
Точность контроля температуры ± 0,1°C Измерительный элемент температуры Платиновое сопротивление (PT100)
Рабочий источник питания AC220V ± 10% 50 Гц Окружающая температура -10 ～ +40℃
Выделить

ASTM D892 lubricating oil foaming analyzer

,

lubricating oil foaming characteristics tester

,

PT100 sensor oil foaming analyzer
Оставьте сообщение
Характер продукции

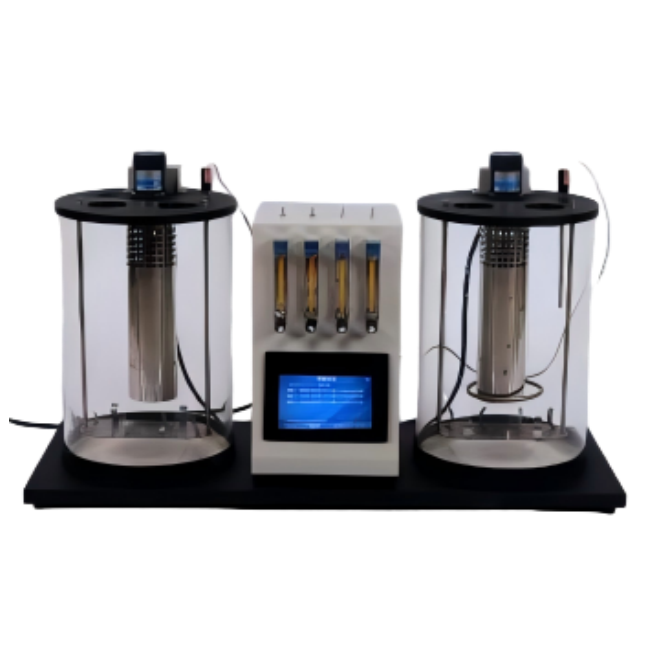

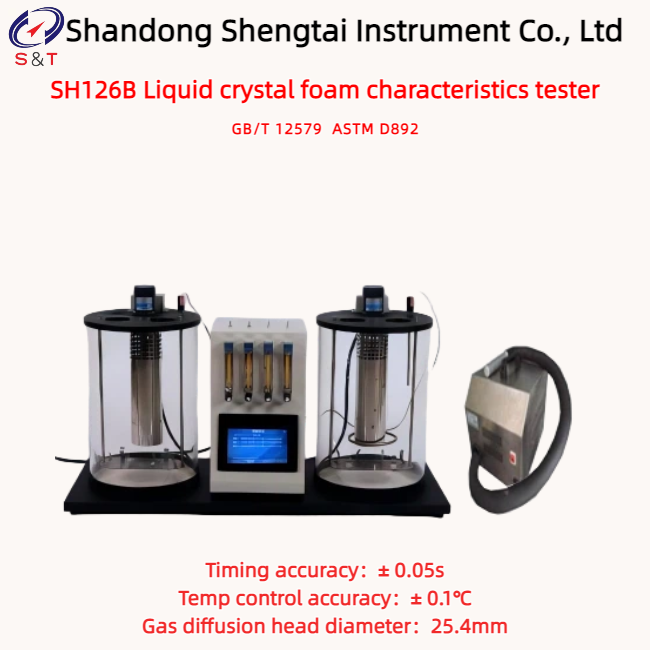

SH126B Liquid crystal foam characteristics tester

Standard: GB/T 12579 ASTM D892

SH126B liquid crystal foam tester is designed according to GB/T 12579-90 "Lubricating Foam Performance Determination Method" and ASTM D892. It is used to determine the foam characteristics of engine lubricating oil, gear oil, hydraulic oil and other oil products to evaluate the foam tendency of lubricating oil and the degree of foam stability.

The instrument is controlled by dynamic temperature control, automatic timing, air source and gas flow centralized control, 32-bit ARM processor control, high-definition color touch screen display, PID temperature control and setting technology has the advantages of accurate test temperature and high constant temperature accuracy.

The instrument can be operated according to the test method of GB/T 12579-90 "Determination of Lubricating Oil Foam Performance".Foam Testing Equipment Electronic for Lubricating Oils ASTM D892 & GB/T 12579 Bubble Tester.

Technical parameters

Temp control method LCD color screen display
Temp control range 5 ～ 100℃, equipped with a cooler
Temp control accuracy ± 0.1℃
Temp measuring element Platinum resistance (PT100)
Test quantity Dual bathtubs, capable of producing 2 samples simultaneously
Experimental measuring cylinder specification 1000mL (specialized measuring cylinder)
Flow control 16-160ml/min float flowmeter, adjustable
Air source self-contained air source, 3L/min
Diffusion head air permeability 3000 ～ 6000mL/min at a pressure of 2.4KPa (250mmH2O)
Timing accuracy ± 0.05s
Heater power 2500W (93.5℃ bathtub), 800W (24℃ bathtub)
Timing accuracy 0.01%+0.05s (at 20℃)
Working power supply AC220V ± 10% 50Hz
Environmental temp -10 ～ +40℃
Relative humidity ≤ 85%
Power consumption of the whole machine not exceeding 3000W
Gas diffusion head diameter 25.4mm
Instrument size 680 * 380 * 550mm
Weight 35kg

ASTM D892 Foaming Characteristics Of Lubricating Oils Analyzer PT100 Sensor 5 ～ 100℃ 0

Note: The appearance pictures, dimensions, volume and weight of the instrument are for reference only. If there are any updates to the instrument, they may be slight changes without prior notice.



Packing list

S/N Name Quantity unit Remarks
1 Host 1 Set
2 Portable refrigerating plant 1 Set
3 Measuring cylinder 4 Piece
4 Foam head 4 Piece
5 Gauge plug 4 Piece
6 Rubber hose 2 Meter
7 Thermometer 1 Piece
8 Power cord 1 Piece
9 Fuse tube 1 Piece 10A
10 Instruction manual 1 Copy
11 Packing list 1 Copy
12 Certificate 1 Copy



Instrument Quality Assurance Certificate

Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:

----The provided instrument materials are brand new, meet quality standards, and have a manufacturer's certificate of conformity;

----The materials and main components provided meet the technical requirements specified in the technical documentation;

----The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts).

----We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to equipment malfunction caused by the user's responsibility, we are responsible for repairing and charging reasonable fees.

----Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine.

----After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.



Packaging and Delivery

1. Goods packaging: standard wooden or cardboard boxes.

2. Internal packaging: Elastic pearl cotton packaging product, hardwood board+strong bandage to fix corners.

ASTM D892 Foaming Characteristics Of Lubricating Oils Analyzer PT100 Sensor 5 ～ 100℃ 1
