Coolant Foam Propensity Tester RT ～ 100℃ Precision Flowmeter Glassware Method ASTM D1881

  • Coolant Foam Propensity Tester RT ～ 100℃ Precision Flowmeter Glassware Method ASTM D1881
  • Coolant Foam Propensity Tester RT ～ 100℃ Precision Flowmeter Glassware Method ASTM D1881
Место происхождения Китай
Фирменное наименование Shandong Shengtai Instrument Co., Ltd
Сертификация SH/T 0066 ASTM D1881
Номер модели SH126C
Количество мин заказа 1
Упаковывая детали деревянный ящик
Время доставки 7 - 15 рабочих дней
Условия оплаты Т/Т
Поставка способности 10000 комплектов/год
Подробная информация о продукте
Мощность нагрева 2000 Вт Расход воздуха контролируется точным потоком
Диапазон контроля температуры КТ ~ 100℃ Приурочивая метод автоматическое время, можно установить самостоятельно
Кронштейн измерительного цилиндра Встроенный специальный встроенный кронштейн из нержавеющей стали. Рабочий источник питания AC220V ± 10% 50 Гц
Выделить

Coolant Foam Propensity Tester ASTM D1881

,

Precision Flowmeter Glassware Lubricant Testing

,

Antifreeze Testing Instrument 100℃ Temperature Range
Оставьте сообщение
Характер продукции

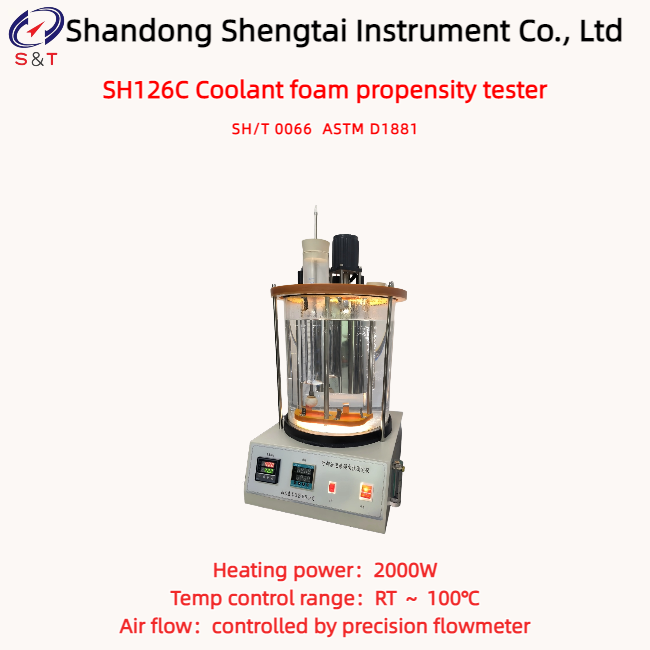

SH126C Coolant foam propensity tester

Standard: SH/T 0066 ASTM D1881

SH126C engine coolant foam tendency tester is designed according to the requirements of the People's Republic of China petrochemical industry standard SH/T0066 "engine cooling foam determination method", suitable for the determination of diluted or concentrated engine coolant foam according to the test method of SH/T0066 standard.

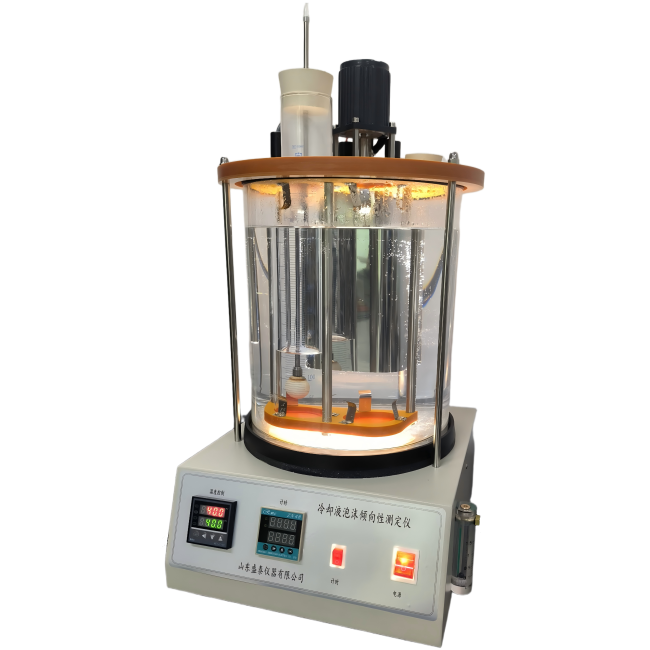

The instrument is composed of a glass bath, an electric control box, an electric heater, an intelligent digital temperature controller, a microcontroller, two 500ml heat-resistant glass measuring cylinders, two gas flow meters and two groups of gas diffusion.

Technical parameters

Heating power 2000W
Air flow controlled by precision flowmeter
Temp control range RT ～ 100℃
Timing method automatic timing, can be set by oneself
Measuring cylinder bracket Built in dedicated stainless steel integrated bracket
Air source Built in dedicated air pump, no need for external air source
Working power supply AC220V ± 10% 50Hz
Environmental temp -10 ～ +40℃
Relative humidity ≤ 85%
Instrument size 350 * 280 * 360mm
Instrument weight 25kg
Packaging size 470 * 420 * 620mm
Packaging weight 15.6kg cardboard box

Coolant Foam Propensity Tester RT ～ 100℃ Precision Flowmeter Glassware Method ASTM D1881 0

Note: The appearance pictures, dimensions, volume and weight of the instrument are for reference only. If there are any updates to the instrument, they may be slight changes without prior notice.



Package list

No. Name Quantity Unit Note
1 Host 1 Set
2 Fuse tube 2 Piece 10A
3 Measuring cylinder 2 Piece 500mL
4 Rubber plug, airway and aerator head 2 Set
5 Thermometer for foam properties 1 Root 50-100℃
6 Power cord 1 Root 220V
7 Specification 1 Piece
8 Warranty card 1 Copy



Instrument Quality Assurance Certificate

Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:

----The provided instrument materials are brand new, meet quality standards, and have a manufacturer's certificate of conformity;

----The materials and main components provided meet the technical requirements specified in the technical documentation;

----The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts).

----We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to equipment malfunction caused by the user's responsibility, we are responsible for repairing and charging reasonable fees.

----Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine.

----After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.



Packaging and Delivery

1. Goods packaging: standard wooden or cardboard boxes.

2. Internal packaging: Elastic pearl cotton packaging product, hardwood board+strong bandage to fix corners.

Coolant Foam Propensity Tester RT ～ 100℃ Precision Flowmeter Glassware Method ASTM D1881 1
