16 Channels Automatic Oil Pollution Particle Counter Sample 0.2～1000ml ISO 4406

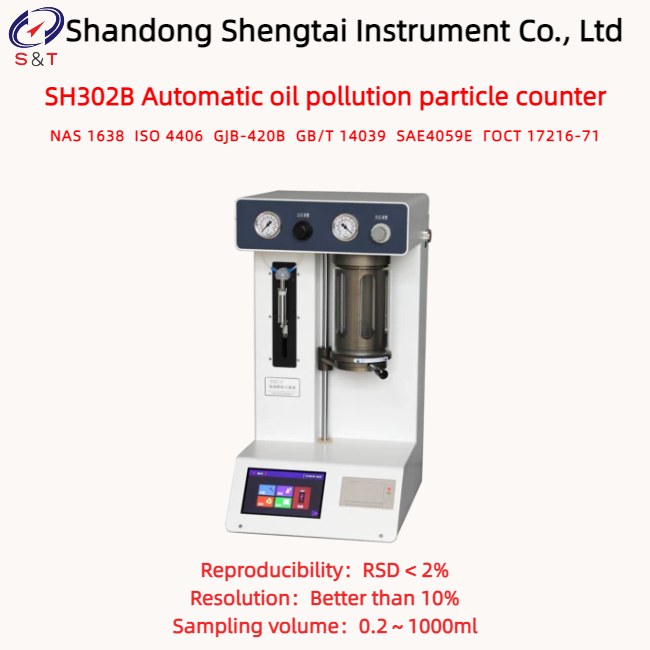

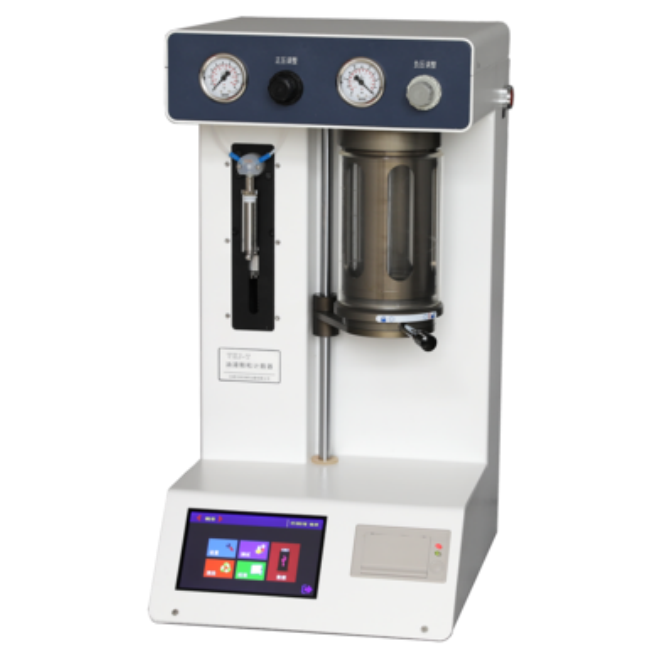

SH302B Automatic oil pollution particle counter

SH302B automatic oil particle counter is used to detect the size and number of the solid particles in the liquid, can be widely used in aerospace, electric power, petroleum, chemical industry, transportation, ports, metallurgy, machinery, automobile manufacturing and other fields, the hydraulic oil, lubricating oil, rock oil, transformer oil, insulating oil, turbine oil, turbine oil, gear oil, engine oil, aviation kerosene, water-based hydraulic fluid solid particle pollution tests such as oil, and organic liquid, polymer solution for detection of insoluble particles.

Automatic oil pollution particle counter uses "photoresist method" to measure particles, and adopts the classic methods of oil industry NAS1638 and ISO4406, and can be according to the requirements of users, built-in a variety of standards required by users.A precision syringe-based sampling system ensures constant sampling speed and precise control of sample volume. The positive/negative pressure sampling chamber facilitates sample degassing and analysis of high-viscosity samples. Equipped with a large-color LCD touchscreen, it features graphical menu display, touch-sensitive operation, and user-friendly functionality.

Performance Features

● The counting principle of light resistance (shading) method formulated by International Hydraulic Standards Committee is adopted.

● High precision laser sensor, wide test range, stable performance, low noise, high resolution.

● Adopt the high pressure injection pump sampling mode, can set the sampling volume, the sampling speed is stable, the sampling accuracy is high.

● Sampling system combined with positive and negative pressure can realize sample degassing, which is suitable for inspection and testing of different viscosity.

● Built-in pressure sensor, you can set the pressure value, and automatically judge the cabin air pressure, ensure safety.

● Built-in air purification system to ensure that the test is not polluted.

● Built-in multiple calibration curves, compatible with all common domestic and foreign standards for calibration.

● Built-in GJB - 420 - b, NAS1638, ISO4406 (GB/T14039), SAE4059E and Г OCT17216-71, and other common standards, support custom standard tests, and can according to customer requirements set the required standards.

● Built - in data analysis system, one test can give all standard test data and pollution level.

● The particle size can be set arbitrarily, with nearly ten thousand particle sizes built in, which is convenient for particle size analysis.

● Various sampling containers such as standard sampling bottles or sampling cups can be used to meet the testing requirements of different industries.

● Full function automatic color touch screen operation, support Chinese and English dual interface, easy to operate.

● Single channel and multi-channel calibration can be carried out to achieve automatic calibration function.

● With RS232 interface, it can be connected to computer or laboratory platform for data processing.

● With mass data storage, printing function, can store 1000 groups of data and support U disk data storage.

Technical indicators

Note: The appearance pictures, dimensions, volume and weight of the instrument are for reference only. If there are any updates to the instrument, they may be slight changes without prior notice.

Instrument Quality Assurance Certificate

Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:

----The provided instrument materials are brand new, meet quality standards, and have a manufacturer's certificate of conformity;

----The materials and main components provided meet the technical requirements specified in the technical documentation;

----The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts).

----We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to equipment malfunction caused by the user's responsibility, we are responsible for repairing and charging reasonable fees.

----Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine.

----After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.

Packaging and Delivery

1. Goods packaging: standard wooden or cardboard boxes.

2. Internal packaging: Elastic pearl cotton packaging product, hardwood board+strong bandage to fix corners.

Packing list
