ASTM D 4693 Low Temp Torque Characteristics Analyzerr For Grease-Lubricated Wheel Bearings

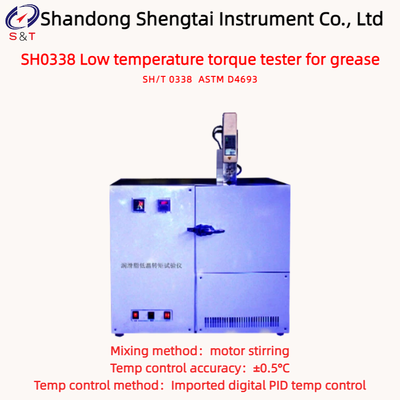

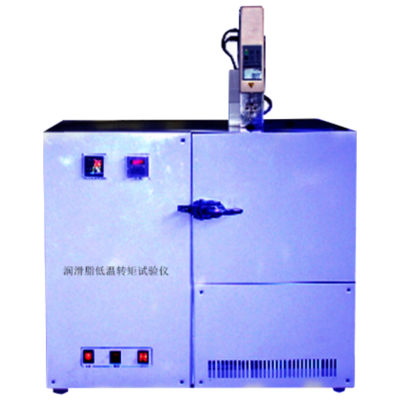

SH0338 Low temperature torque tester for grease

Standard: SH/T 0338 ASTM D4693 ASTM D1478

SH0338 Grease Low-Temperature Torque Tester is suitable for measuring the low-temperature torque of ball bearing grease below -20°C, complying with SH/T0338-92. This instrument employs a dual-compression refrigeration system, offering rapid and effective cooling. With its simple structure and aesthetically pleasing design, it is highly suitable for laboratory use.

Performance and Features

● This instrument adopts imported dual-compressor refrigeration and uses a condenser for heat dissipation, enabling cooling upon power connection.

● The instrument is equipped with an imported digital temperature control display for temperature regulation, featuring Pt100 sensors with high sensitivity, resolution, strong anti-interference capability, and high temperature control accuracy.

● The low-temperature chamber of this instrument has excellent sealing performance, ensuring stable internal temperature and maintaining the required test temperature conditions.

● A door control switch is installed at the box door. During the test, when the door is opened, the internal fan stops working to ensure operator safety.

Key technical parameters

Note: The appearance images, dimensions, volume, and weight of the instrument are for reference only. Updates to the instrument may involve minor changes, and no separate notice will be provided.

Instrument Quality Assurance Certificate

Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:

----The provided instrument materials are brand new, meet quality standards, and have a manufacturer's certificate of conformity;

----The materials and main components provided meet the technical requirements specified in the technical documentation;

----The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts).

----We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to equipment malfunction caused by the user's responsibility, we are responsible for repairing and charging reasonable fees.

----Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine.

----After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.

Packaging and Delivery

1. Goods packaging: standard wooden or cardboard boxes.

2. Internal packaging: Elastic pearl cotton packaging product, hardwood board+strong bandage to fix corners.

Package list
