Automatic Saybolt Colorimeter Tester Observer Angle 2°/10° 100mm Optical Path ASTM D156

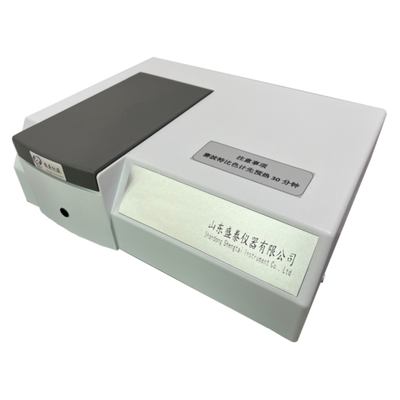

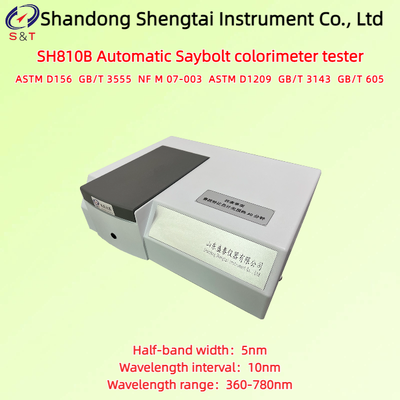

SH810B Automatic Saybolt colorimeter tester

Standard: ASTM D156 GB/T 3555 NF M 07-003 ASTM D1209 GB/T 3143 GB/T 605

Automatic Saybolt colorimeter tester Observer Angle 2°/10° 100mm optical path ASTM D156

SH810B fully automatic colorimeter features microprocessor-controlled touch screen operation, suitable for both laboratory and field use. It includes factory calibration and user-defined calibration functions, with a uniquely designed sample cell for easy measurement and maintenance.

Saybolt (ASTM D156, GB/T 3555, NF M 07-003)

The platinum-cobalt colorimeter employs a D/0 measurement structure, integrating full-bandwidth light sources, single-grating optical path spectrometry, and ETC real-time calibration technologies, achieving a resolution of 0.0001, a transmittance standard deviation within 0.08%, and a color difference value of ΔE*ab 0.015.

The platinum-cobalt color is expressed in Hazen units, where one unit corresponds to the color of a solution containing 1 milligram of platinum as chloroplatinate and 2 milligrams of cobalt chloride hexahydrate per liter. The typical range generally falls between 1 and 500 Hazen units. This method is suitable for determining the color of transparent or slightly hazy liquid chemical products that are close to the platinum-cobalt reference color, which is usually brownish-yellow in hue.

Gardner Color Scale: Standard color values are obtained by mixing solutions of cobalt chloride, ferric chloride, and potassium chloroplatinate in varying proportions, typically ranging from 1 to 18. It is suitable for colors that are darker yellow or more brownish than the platinum-cobalt color scale.

Instrument features:

● Utilizes intelligent zero-point calibration to ensure precise measurement with △E*ab≤0.01

● Dedicated paraffin cuvettes, 100mm cuvettes

● Fast measurement speed, with a single measurement taking only 1.5 seconds

● Constant temperature sample bath: Room temperature to 90°C, ensuring sample fluidity

● Heating module: PTC heating module

● 7-inch touchscreen offers a user-friendly interface, with the instrument capable of storing over 100,000 data entries

● Measurable, including colorimetric indices such as platinum-cobalt, Gardner, Saybolt, and others

● The minimum liquid addition is reduced to 1ml, with standard 10mm and 50mm cuvettes, and 33mm cuvettes (optional)

● The instrument measures wavelengths in the range of 360–780 nm, exceeding the visible spectrum of the human eye and extending the measurement range.

Technical parameter

Saybolt cuvette 100mm

Instrument Quality Assurance Certificate

Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:

----The provided instrument materials are brand new, meet quality standards, and have a manufacturer's certificate of conformity;

----The materials and main components provided meet the technical requirements specified in the technical documentation;

----The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts).

----We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to equipment malfunction caused by the user's responsibility, we are responsible for repairing and charging reasonable fees.

----Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine.

----After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.

Packaging and Delivery

1. Packaging of goods: standard wooden or cardboard boxes.

2. Internal packaging: Elastic pearl cotton packaging product, hardwood board+strong bandage to fix corners.

Packing list
